UNI EN ISO 19085-11:2020 | Macchine combinate

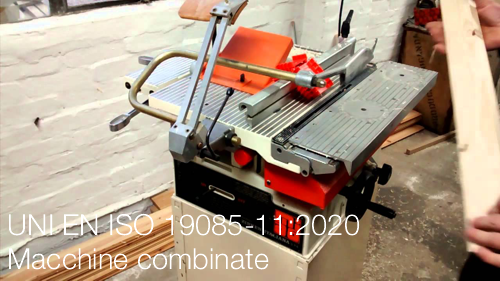

UNI EN ISO 19085-11:2020 Macchine per la lavorazione del legno - Sicurezza - Parte 11: Macchine combinate

Data entrata in vigore: 28 maggio 2020

La norma fornisce i requisiti e le misure di sicurezza per le macchine combinate stazionarie e spostabili per la lavorazione del legno, con almeno due unità di lavoro utilizzabili separatamente e con carico e scarico manuale del pezzo. Le unità di lavoro integrate possono essere solo di questi tipi:

- un'unità di taglio;
- un'unità di stampaggio;
- un'unità di piallatura.

Le macchine sono progettate per tagliare legno massiccio e materiali con caratteristiche fisiche simili al legno.

La norma tratta tutti i pericoli significativi, le situazioni e gli eventi pericolosi relativi a tali macchine, quando sono azionate, regolate e mantenute come previsto e alle condizioni previste dal fabbricante, compreso un utilizzo improprio ragionevolmente prevedibile.

Recepisce: EN ISO 19085-11:2020

Adotta: ISO 19085-11:2020

Sostituisce: UNI EN 940:2012

http://store.uni.com/catalogo/uni-en-iso-19085-11-2020

...

 In allegato Preview EN ISO 19085-11:2020 riservata Abbonati

ISO 19085-11:2020 WOODWORKING MACHINES - SAFETY - PART 11: COMBINED MACHINES

This document gives the safety requirements and measures for stationary and displaceable combined woodworking machines, having at least two separately usable working units and with manual loading and unloading of the workpiece, hereinafter referred to as “machines”.

The integrated working units can be of these types only:

- a sawing unit;
- a moulding unit;
- a planing unit.

The machines are designed to cut solid wood and material with similar physical characteristics to wood.

NOTE 1 For the definitions of stationary and displaceable machines, see ISO 19085-1:2017, 3.4 and 3.5.

This document deals with all significant hazards, hazardous situations and events as listed in Clause 4, relevant to the machines, when operated, adjusted and maintained as intended and under the conditions foreseen by the manufacturer including reasonably foreseeable misuse. Also, transport, assembly, dismantling, disabling and scrapping phases have been taken into account.

NOTE 2 For relevant but not significant hazards, e.g. sharp edges of the machine frame, see ISO 12100:2010.

This document does apply to machines also equipped with the devices/additional working units listed in the Scopes of ISO 19085-5:2017, ISO 19085-6:2017, ISO 19085-7:2019 and ISO 19085-9:2019.

This document does not apply to:

a) machines incorporating only a planing unit and a mortising device; NOTE 3 Such machines are dealt with in ISO 19085-7:2019.
b) combined machines incorporating a band saw unit;
c) machines with a mortising unit with a separate drive other than the planing unit drive;
d) machines intended for use in potentially explosive atmosphere;
e) machines manufactured before the date of its publication as an International Standard.
