EN IEC 62061:2021

EN IEC 62061:2021 | Functional safety of safety-related control systems (SCS)

ID 14229 | Update news 05.04.2024 / Preview attached

EN IEC 62061:2021 Safety of machinery - Functional safety of safety-related control systems

Valid from 03.08.2021

This International Standard specifies requirements and makes recommendations for the design, integration and validation of safety-related control systems (SCS) for machines.

Supersedes  EN 62061:2005 and all of its amendments and corrigenda (if any)

This edition constitutes a technical revision. This edition includes the following significant technical changes with respect to the previous edition:

- structure has been changed and contents have been updated to reflect the design process of the safety function,
- standard extended to non-electrical technologies,
- definitions updated to be aligned with IEC 61508-4,
- functional safety plan introduced and configuration management updated (Clause 4),
- requirements on parametrization expanded (Clause 6),
- reference to requirements on security added (Subclause 6.8),
- requirements on periodic testing added (Subclause 6.9),
- various improvements and clarification on architectures and reliability calculations (Clause 6 and Clause 7),
- shift from "SILCL" to "maximum SIL" of a subsystem (Clause 7),
- use cases for software described including requirements (Clause 8),
- requirements on independence for software verification (Clause 8) and validation activities (Clause 9) added,
- new informative annex with examples (Annex G),
- new informative annexes on typical MTTFD values, diagnostics and calculation methods for the architectures (Annex C, Annex D and Annex H).

It is applicable to control systems used, either singly or in combination, to carry out safety functions on machines that are not portable by hand while working, including a group of machines working together in a co-ordinated manner.

This document is a machinery sector specific standard within the framework of IEC 61508 (all parts). The design of complex programmable electronic subsystems or subsystem elements is not within the scope of this document.

This is in the scope of IEC 61508 or standards linked to it; see Figure 1.

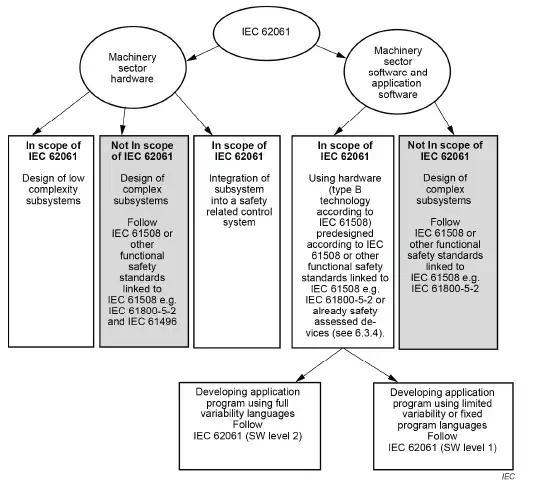

Figure 1 – Scope of this document

NOTE 1 Elements such as systems on chip or microcontroller boards are considered complex programmable electronic subsystems. The main body of this sector standard specifies general requirements for the design, and verification of a safety-related control system intended to be used in high/continuous demand mode.

This document:

NOTE 2 Requirements to mitigate risks arising from other hazards are provided in relevant sector standards. For example, where a machine(s) is part of a process activity, additional information is available in IEC 61511.

This document does not cover

- electrical hazards arising from the electrical control equipment itself (e.g. electric shock - see IEC 60204-1);
- other safety requirements necessary at the machine level such as safeguarding;
- specific measures for security aspects - see IEC TR 63074.

This document is not intended to limit or inhibit technological advancement. Figure 1 illustrates the scope of this document.

[...]

Preview IEC 62061: 2021 attached

...
