CEI IEC 60479-1:2020
CEI IEC 60479-1:2020 Effetti corrente elettrica attraverso il corpo umano - Estratto
ID 12108 | 21.11.2020 / Documento di lavoro completo allegato
Estratto della nuova norma CEI IEC 60479-1:2020 sugli effetti della corrente elettrica attraverso il corpo umano, pubblicata il 31 ottobre 2020 che annulla e sostituisce la CEI 64-18:2011.
CEI IEC 60479-1
Effetti della corrente elettrica attraverso il corpo umano e degli animali Parte 1: Aspetti generali
Questa Norma rappresenta una guida per comprendere gli effetti della corrente elettrica attraverso il corpo umano e degli animali.
La Norma in oggetto sostituisce completamente la Norma CEI 64-18:2011-10.
Questa Norma viene pubblicata dal CEI nella sola lingua inglese in quanto particolarmente mirata a settori specialistici.
La presente Norma recepisce il testo originale inglese della Pubblicazione IEC.
Annullata la CEI 64-18:2011
La norma CEI IEC 60479-1:2020 sostituisce in data 01.11.2020 la norma CEI 64-18:2011 "Effetti della corrente elettrica attraverso il corpo umano e degli animali domestici Parte 1: Aspetti generali", che è annullata.
5. Effects of sinusoidal alternating current in the range of 15 Hz to 150 Hz
5.1 General
Clause 5 describes the effects of sinusoidal alternating current passing through the human body within the frequency range 15 Hz to 150 Hz
NOTE
Unless otherwise specified, the current values defined hereinafter are RMS values.Examples of touch currents and their effects are shown in Figure 16
...
5.9 Description of time/current zones (see Figure 20)
The time/current zones and the current boundaries for the different physiological effects of the pathway hand to feet are given in Table11.

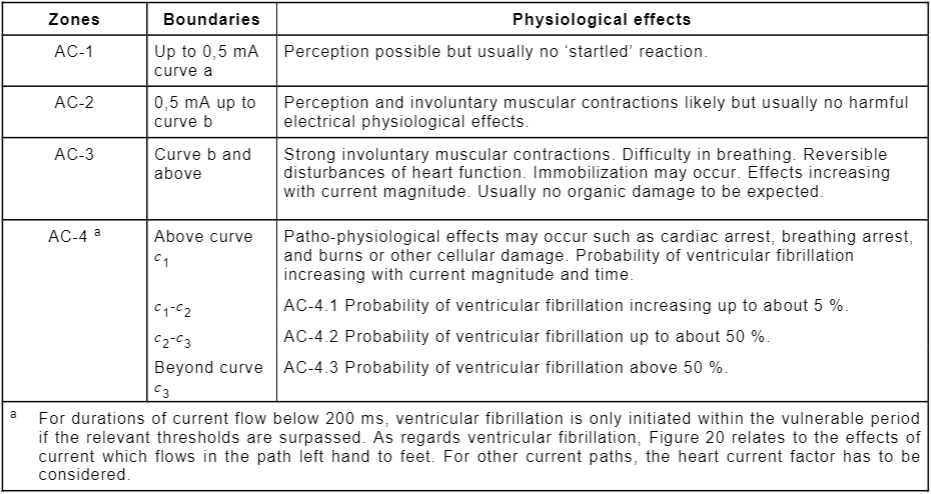

Table 11
Time/current zones for AC 15 Hz to 100 Hz for hand to feet pathway - Summary of zones of Figure 20

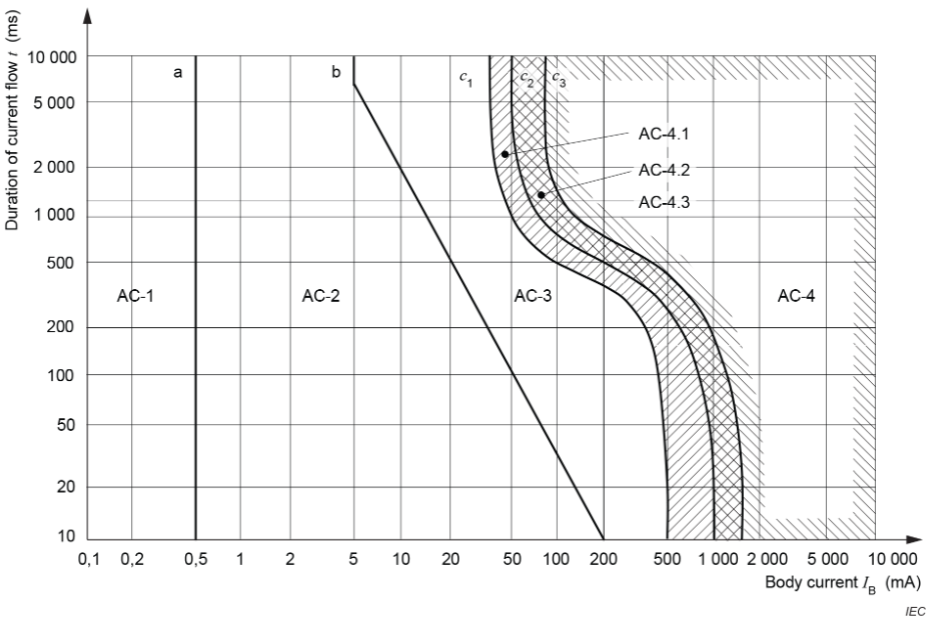

Figure 20
Conventional time/current zones of effects of AC currents (15 Hz to 100 Hz) on persons for a current path corresponding to left hand to feet (see Table 11)
...
Segue in allegato
