Illustrazioni di corretta progettazione igienica di macchine alimentari / UNI EN 1672-2:2021

ID 2024 | Rev. 1.0 del 02.07.2022 / Documento completo allegato

Illustrazioni di igiene e pulibilità di macchine alimentari di cui allegato B della norma EN 1672-2:2020 (UNI 2021) che ha sostituito l'Ed. 2009.

Annex A Examples of machinery which can be covered by this document
...

Annex B  Examples of hygiene risks and acceptable solutions

...

Key
1 product-lubricated bearing

Figure B.14 — Bearing and shaft entry point

...

Key
a dead space, air trap and condensation
b Short T-piece
c dimension ≤ inner pipe diameter
1 probe
2 swept T-piece

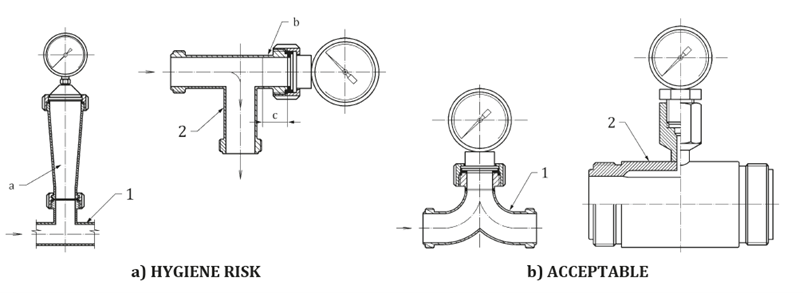

Figure B.16 — Instrumentation (pressure gauges)
...

Key
1 foot plate
2 threaded rod
3 seals

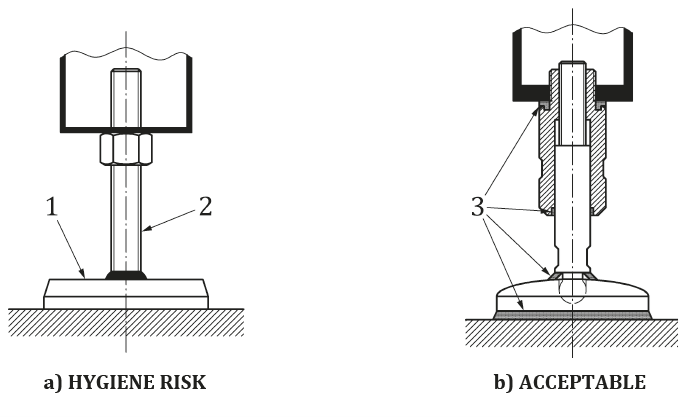

Figure B.21 — Height-adjustable foot
...

Figure B.1 — Accessibility and cleanability
Figure B.2 — Joints
Figure B.3 — Welded joints
Figure B.4 — Permanent joints – welded pipes
Figure B.5 — Dismountable joints (hygiene risk)
Figure B.6 — Dismountable joints (acceptable)
Figure B.7 — Dismountable joints
Figure B.8 — Seals (O-rings)
Figure B.9 — Drainage of vessel
Figure B.10 — Drainage of pump
Figure B.11 — Drainage of pipelines
Figure B.12 — Internal angles and corners
Figure B.13 — Bearing and shaft entry point
Figure B.14 — Bearing and shaft entry point
Figure B.15 — Instrumentation (e.g. temperature, pH, turbidity measurement
Figure B.16 — Instrumentation (pressure gauges)
Figure B.17 — Horizontal frameworks related to the mounting position
Figure B.18 — Control device with a durable cover (schematic figure)
Figure B.19 — Acceptable hinges
Figure B.20 — Turn locks
Figure B.21 — Height-adjustable foot
